Thermian Appearance Generator Blueprints

Current Status

APR 8, 2001 -  Minor update of page graphic images.

JAN 21, 2001 -  Work on this set of blueprints is completed and, unless significant new reference material becomes available, no updates are expected or planned.  if you have and questions, suggestions, or information you'd like to share, contact The Questarian  CAD FILES

CAD FILES FOR DOWNLOAD (188K)
The zip file contains the follow formats:
AutoCAD R14/LT97/LT98 Drawing .DWG & DXF
AutoDesk QuickCAD .CAD
If you need another format contact The Questarian  VIEWS

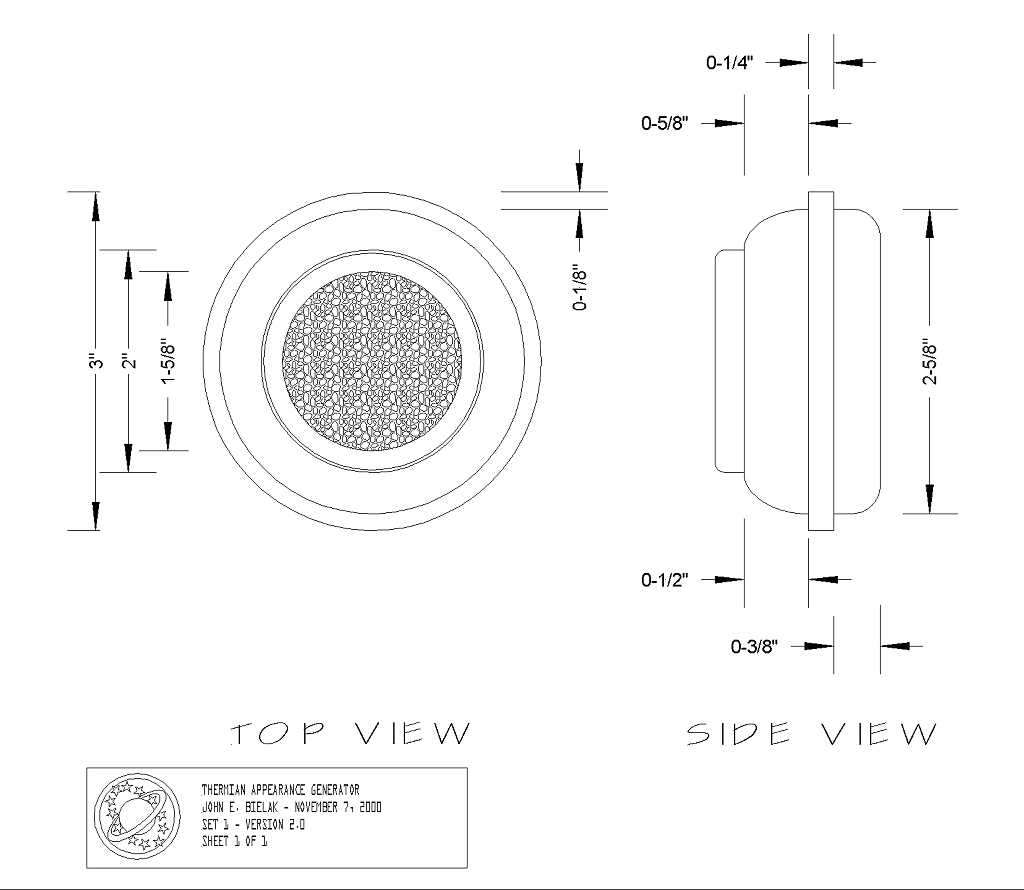

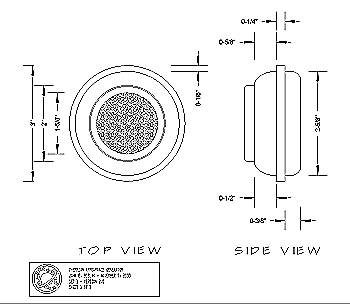

Click on Pic for larger view
SET 1 - REVISION 2.

Current issues to be resolved:

1. What exactly is the "height" of the bottom piece?
After re-measuring the Appearance Generator, I've revised the bottom from .38" to about .41" ... It's not a huge change but I'm trying to get a good final measurement .



Special Thanks to K. J. Karvonen for Source Reference Material!

The Thermian Appearance Generator  blueprints are based on reference material and not the original prop specifications... the dimensions given are base on measurement of the material I had to work with and a number of educated guesses.   Short of the release of a set of original prints, this is as accurate as we're about to get.
