Interstellar VOX Blueprint Project

Current Status

OCTOBER 5, 2003 - After reviewing the new pic, I've noticed a few changes that need to made to the VOX prints that I'll be doing over the next couple weeks.

OCTOBER 5, 2003 - I've added the new pics of the Vox to the Props pages

JAN 21, 2001 - I consider this set of blueprints completed and, unless new reference material becomes available,  have no plans any major updates at this time.  The only thing missing is the GQ logo piece and LED's  that appears in the "prop" prop version.  The version that I have up reflects the plasma panel "Real" prop version.  I'll be adding this version detail sometime during 2001.  If you have and questions, suggestions, or information you'd like to share, contact The QuestarianReferences

Vox Prop Pictures


CAD FILES

VOX CAD FILES FOR DOWNLOAD (112K)
The zip file contains the follow formats:
AutoCAD R14/LT97/LT98 Drawing .DWG & DXF
AutoDesk QuickCAD .CAD
If you need another format contact The Questarian VIEWS

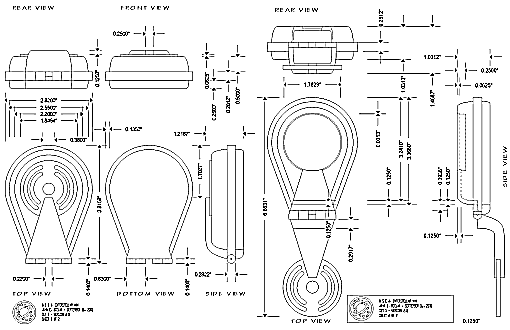

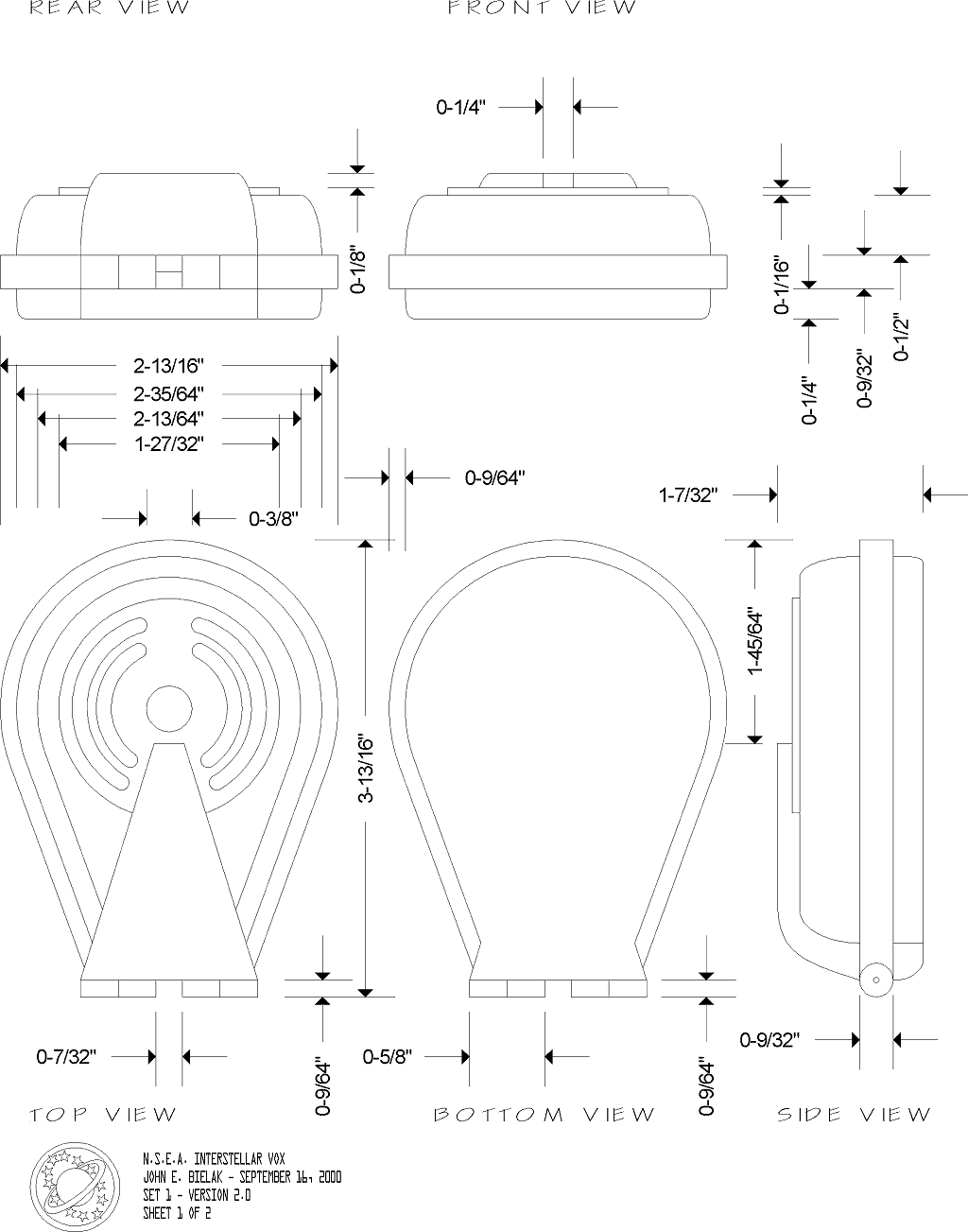

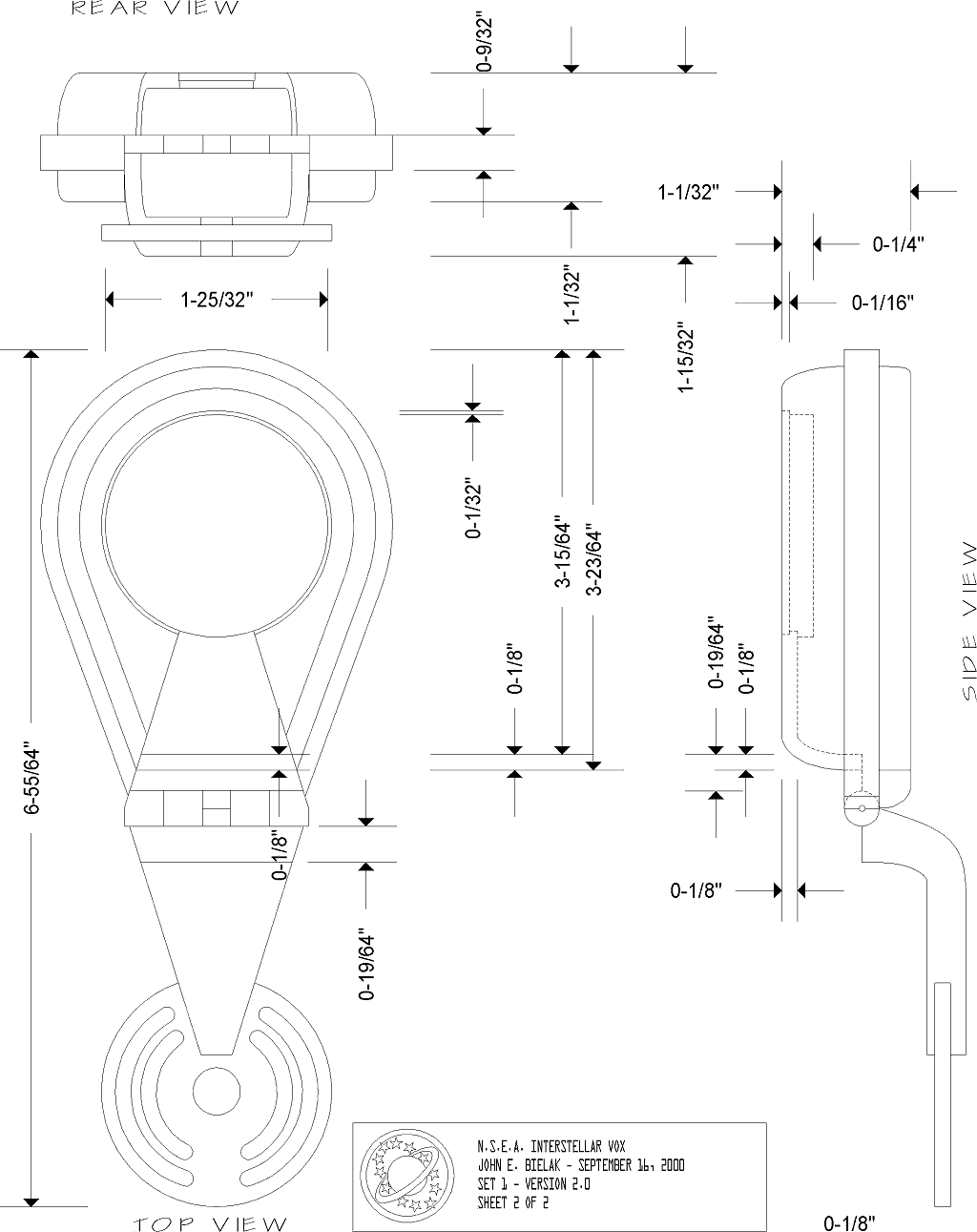

Click Left Side of Pic For Sheet 1                 Click Right Side Of Pic for Sheet

SET 1 - REVISION 2.
Click here for fraction version of sheet 1    Click here for fraction version of sheet 2

Current issues to be resolved:

1.How deep does the Flip open cover recess into the body?
I Think the disk extends down another 1/16 (total thickness 1/8") and the arm an additional 1/8" (Total thickness about 1/4" at the tip)

3. What is the shape of the hinge.?
The hinge on my reference sort of looks like what I have on the prints... Is it squared or does the outer sides angle all the way in and not half way like I have them?

Special Thanks to K. J. Karvonen for Source Reference Material!

The VOX blueprints are based on reference material and not the original prop specifications... the dimensions given are base on measurement of the material I had to work with and a number of educated guesses.   Short of the release of a set of original prints, this is as accurate as we're about to get.
